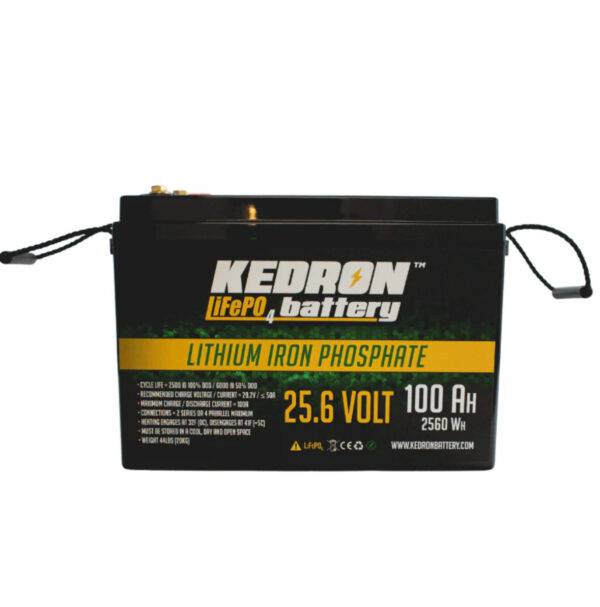

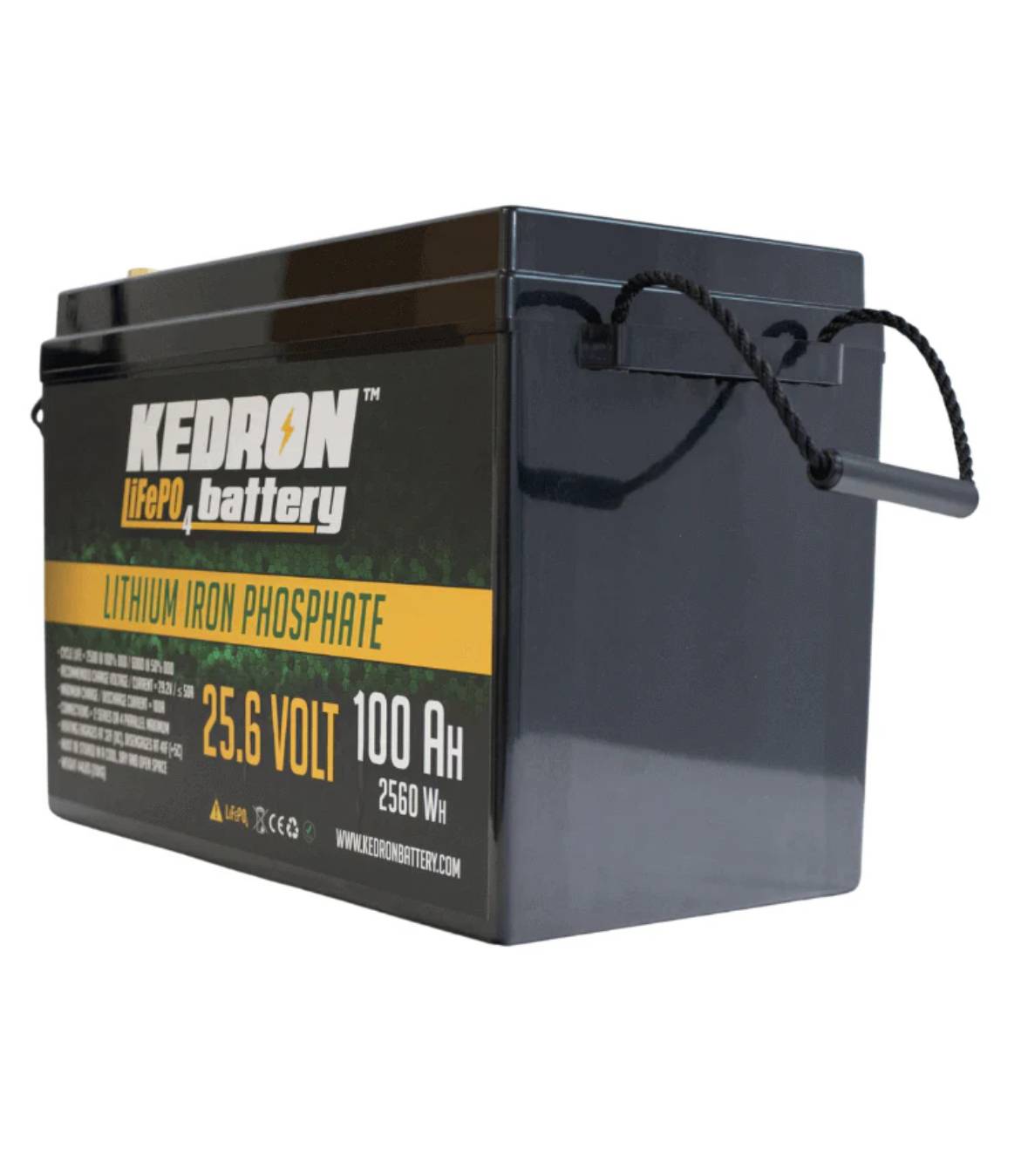

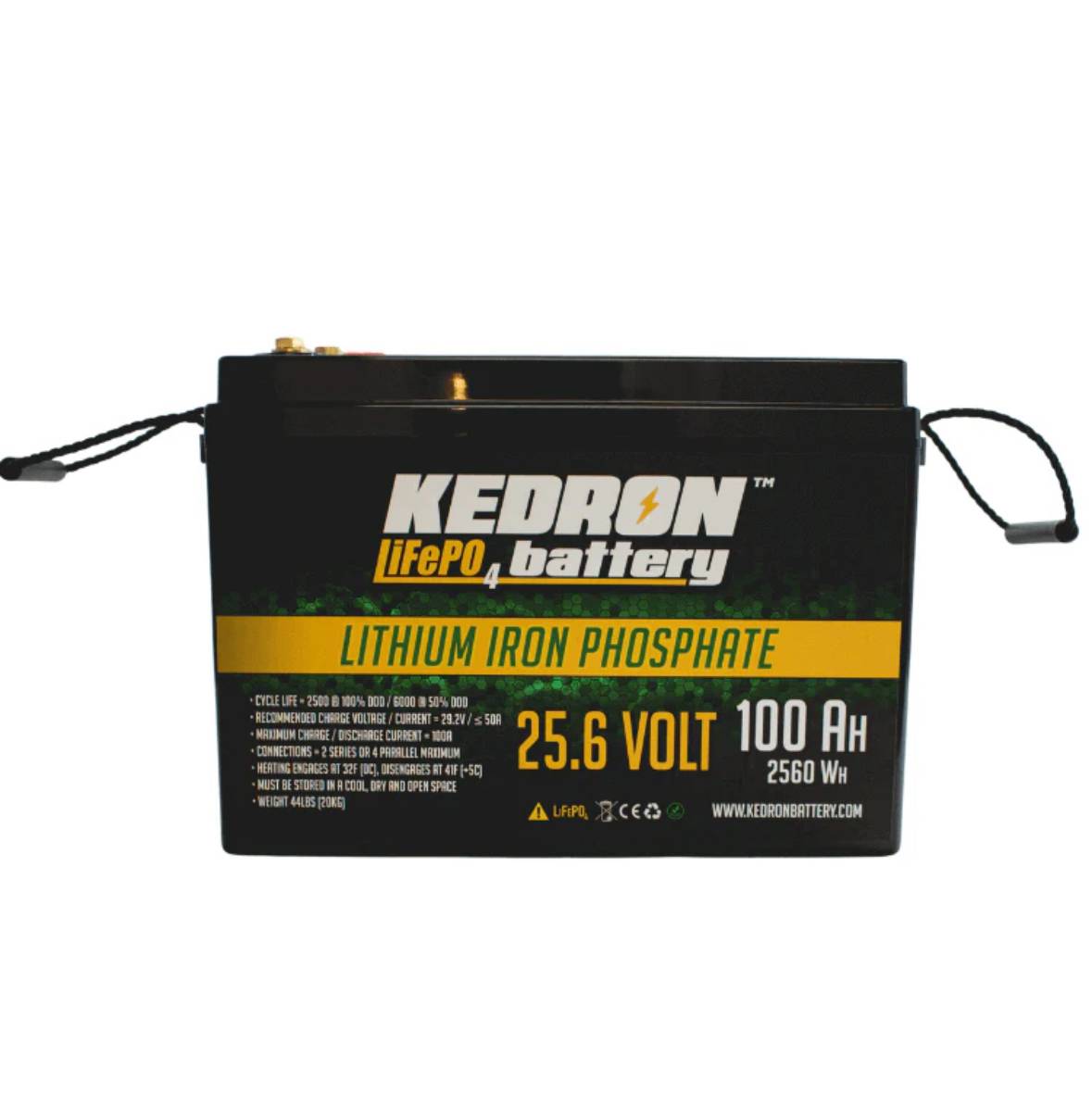

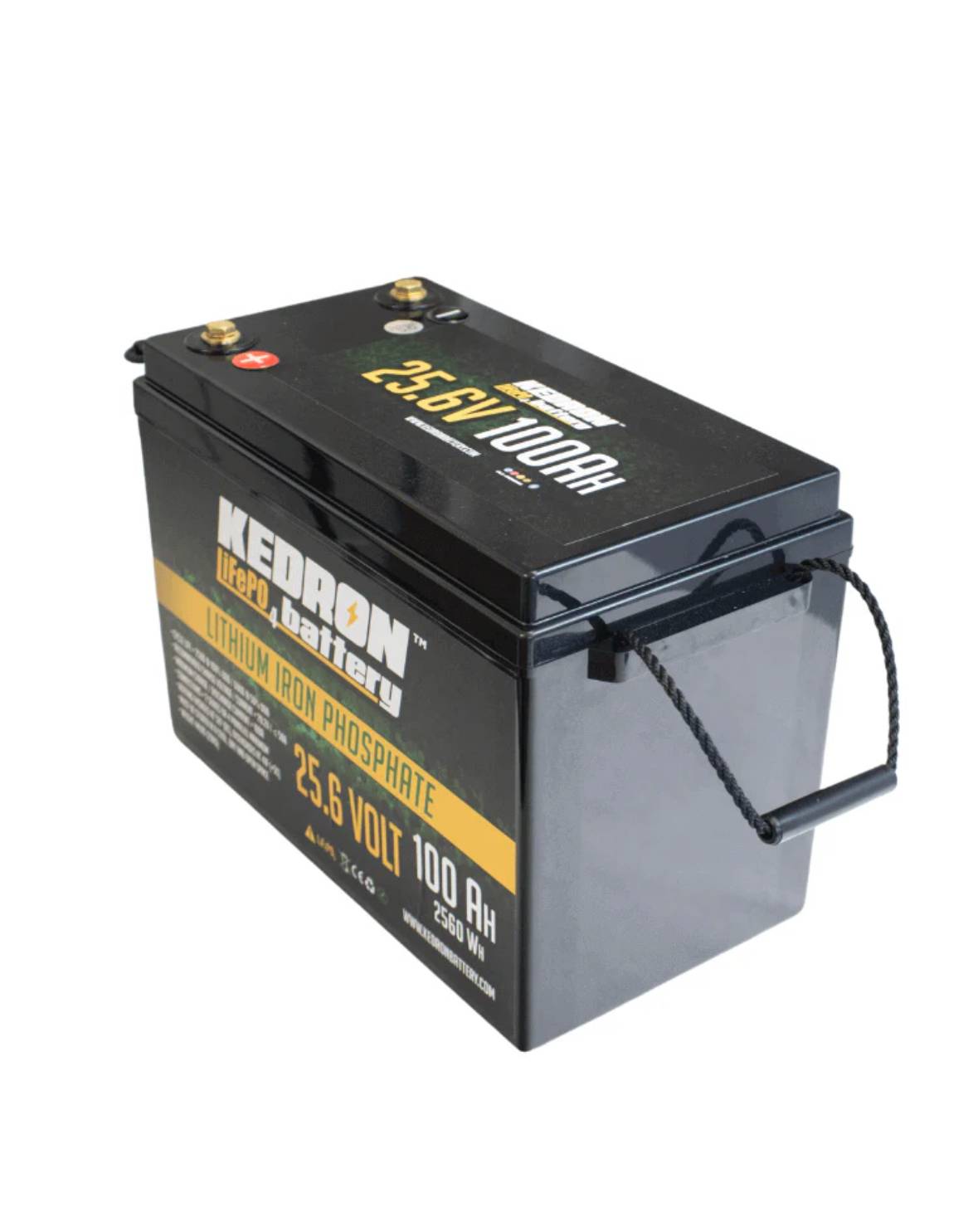

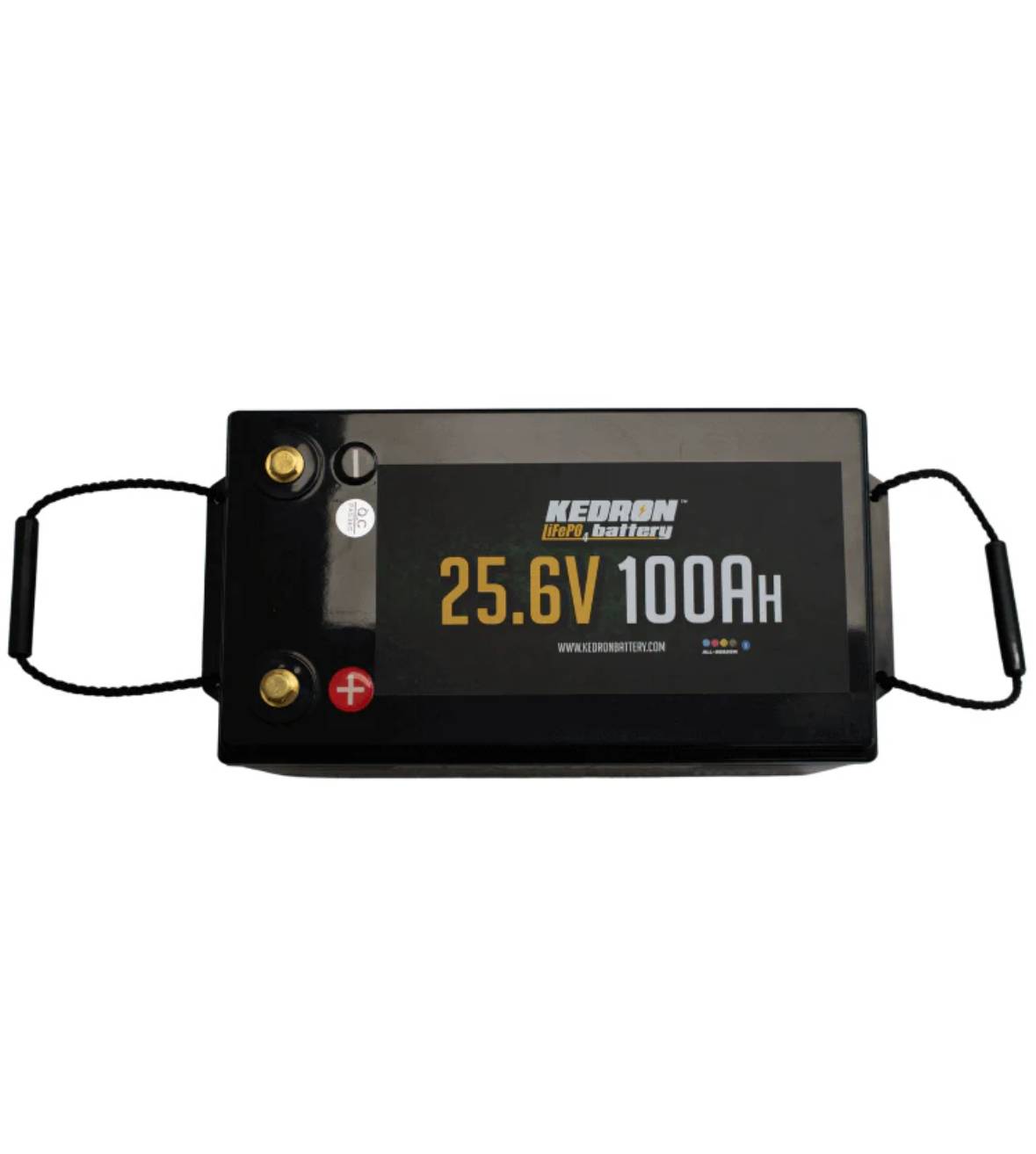

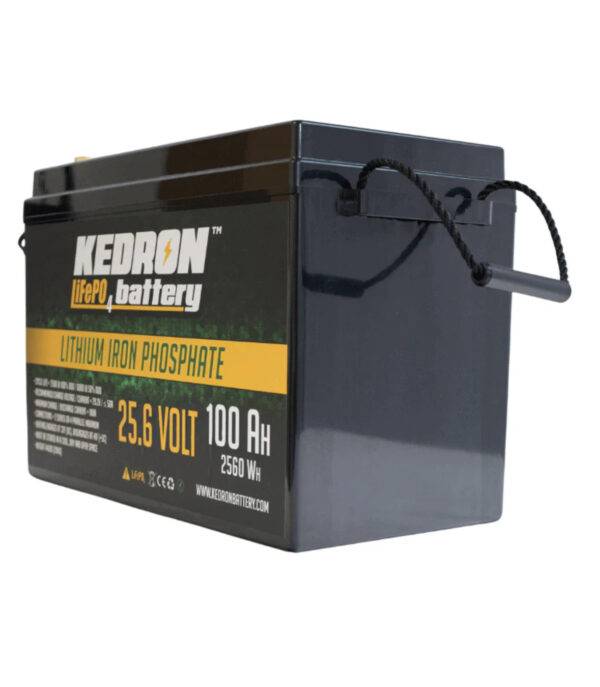

Kedron 24V 100AH LiFePO4 Battery

Kedron 24v LiFePO4 100AH

Welcome to the newest addition to the Kedron Battery™ family: Kedron LiFePO4.

With exceptional cycle life, our new Lithium Iron Phosphate batteries weigh about 50% less vs equivalent lead-acid battery models, and more importantly, can handle prolonged storage below 50% SOC and deep cycling without damage: No sulfation. No stratification. Less worries.

Highlights

• Higher usable capacity & true LiFePO4 performance
• 24 Volt – 100Ah / 2560Wh capacity
• Extreme cold weather operating capability
• Weight: 44lbs (20kg)
• Dimensions WxDxH: 12-3/4″ x 6-3/4″ x 8.5″ (326mm x 173mm x 215mm) including terminal
• 60 Month Limited Warranty (36mo LiFePO4 cells + additional 24mo for BMS)

Safety

• Integrated battery management system (BMS) for safe charging & discharging
• UN3480 compliant, UN38.3 cell certification, and CE system certification
• Expected cycle life ~2500 @ 100% DOD / ~6000 @ 50% DOD

Design

• Fast charge & discharge performance
• Cold weather operating system allows for uninterrupted wintertime use
• Recommended charge voltage / current = 29.2V / <50A
• Maximum charge / discharge current = 100A
• Updated design: charge & discharge in cold temperatures!
• Normal operating temperature range: -22F to 140F (-30C to +60C)
• Maintenance-free
• Parallel Support = 4 Units max (4 x 24v parallel = 400Ah @ 24v)
• Series Support = 2 Units max (2 x 24v series = 200Ah @ 48v)
