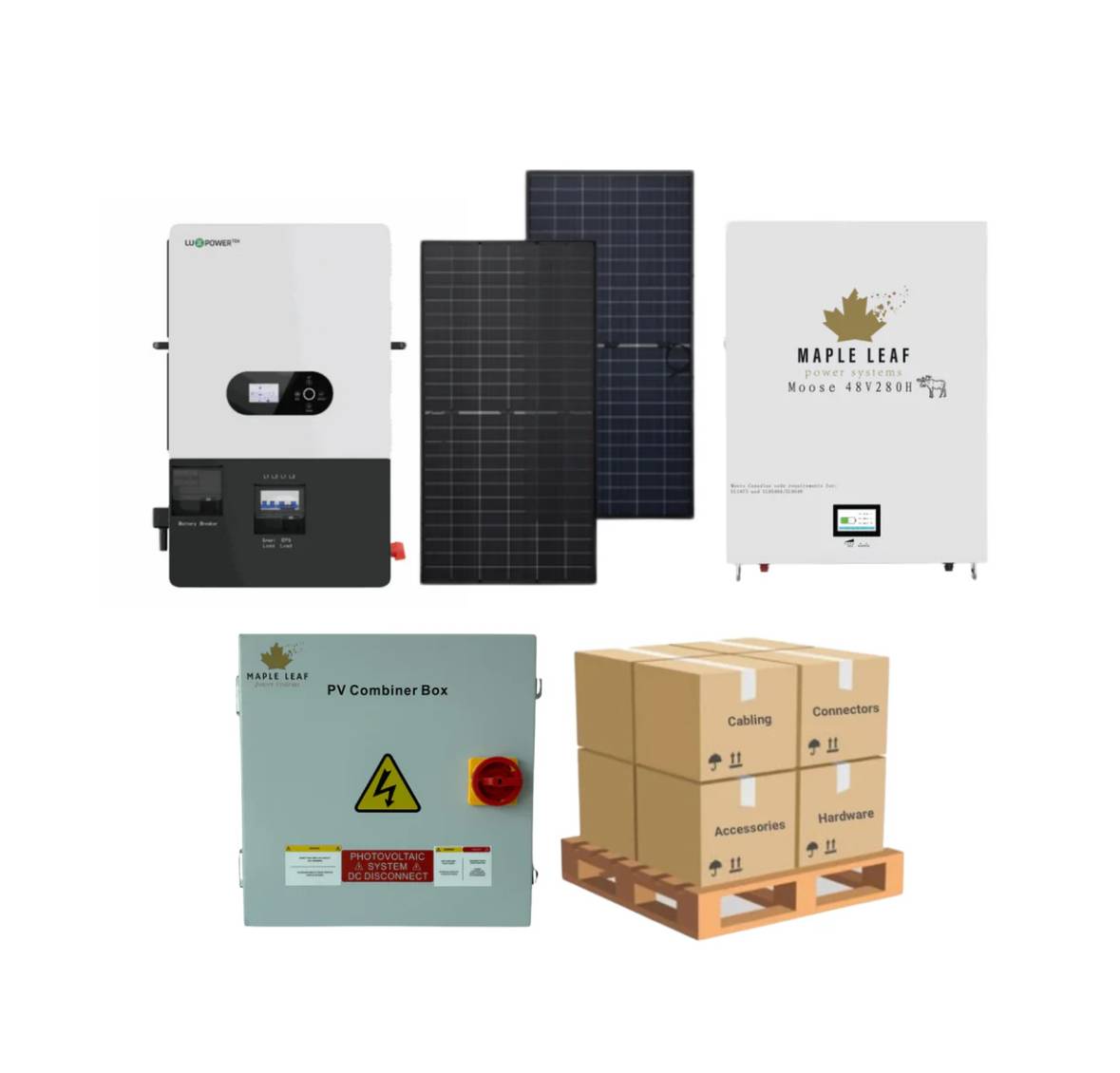

Off-Grid Solar Power Systems

Product Specification

• Dimension (W/H/D): 900*675*200mm / 35.4*26.6*7.8 in
• Weight Approximate: 128.5kgs / 283 lbs
• Master LED Indicator: 4 LED (SOC:25%~100%)/ 2 LED (working, alarming, protecting)
• IP Rating of Enclosur: IP20

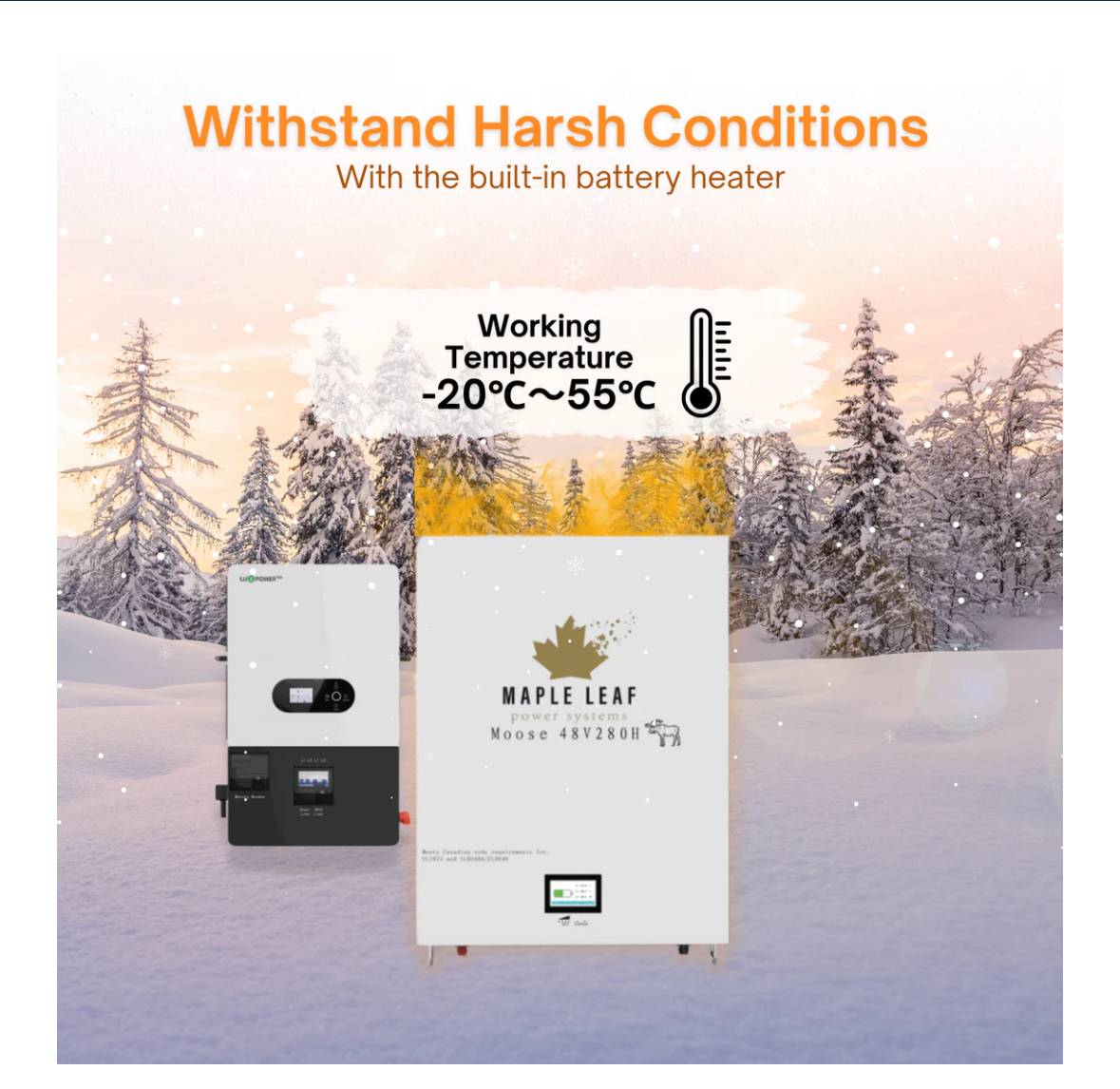

• Working Temperature: Charge: -20℃～55℃ Discharge:-20℃～55℃
• Storage Temperature: -20℃～35℃
• Humidity: Charge: 5%~95%
• Altitude: ≤2000m
• Cycle Life (25±2℃,0.5C/0.5C,80%EOL): ≥8500

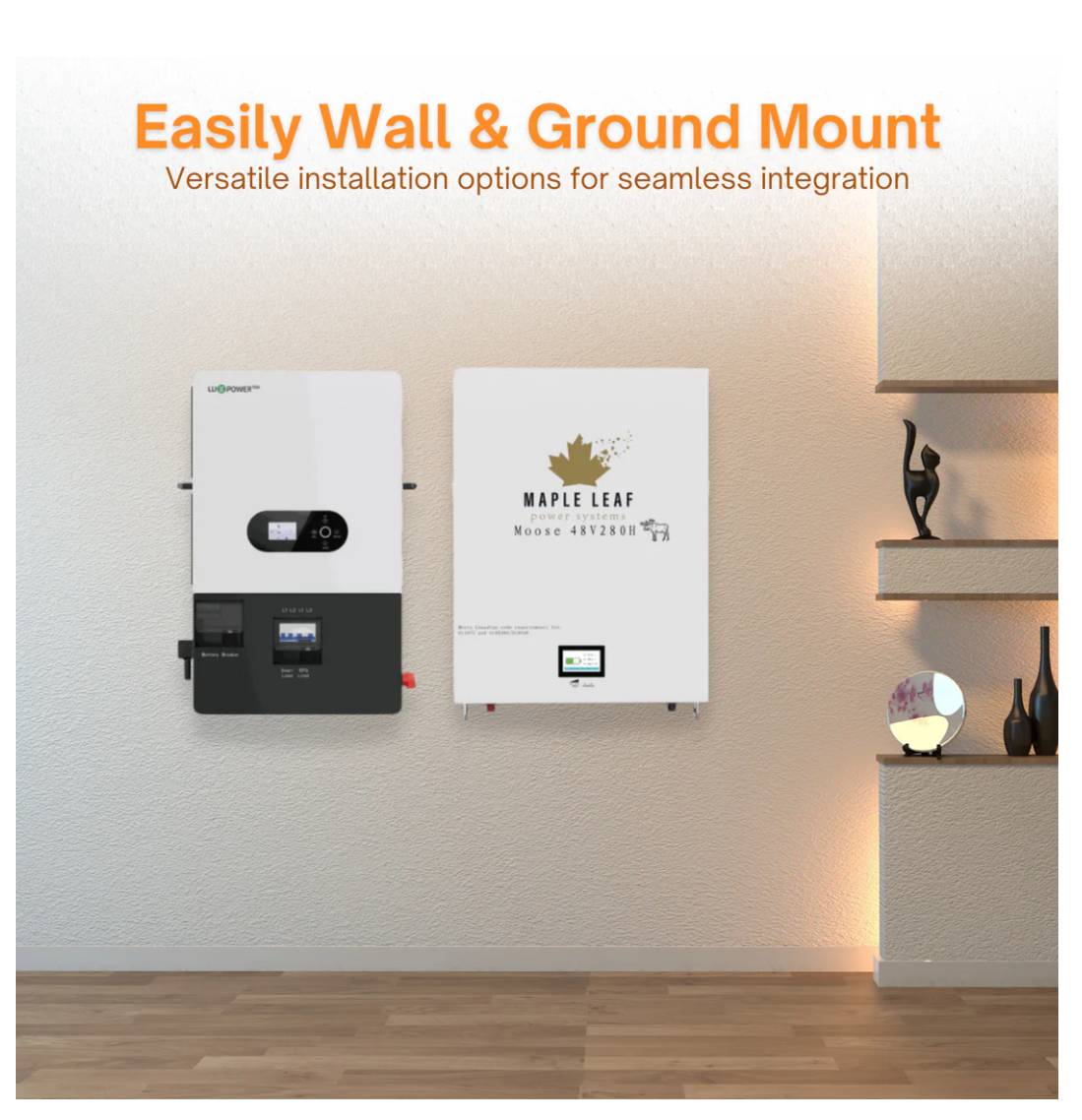

• Installation: Wallmounted
• Communication Port: CAN2.0, RS485
• Warranty Period: 15 years
• Life Cycle Power During Warranty Period:64.80MWh@80% EOL
• Certification: UL1973, UL9540A, UL9540 [With Luxpower and EG18K inverters]

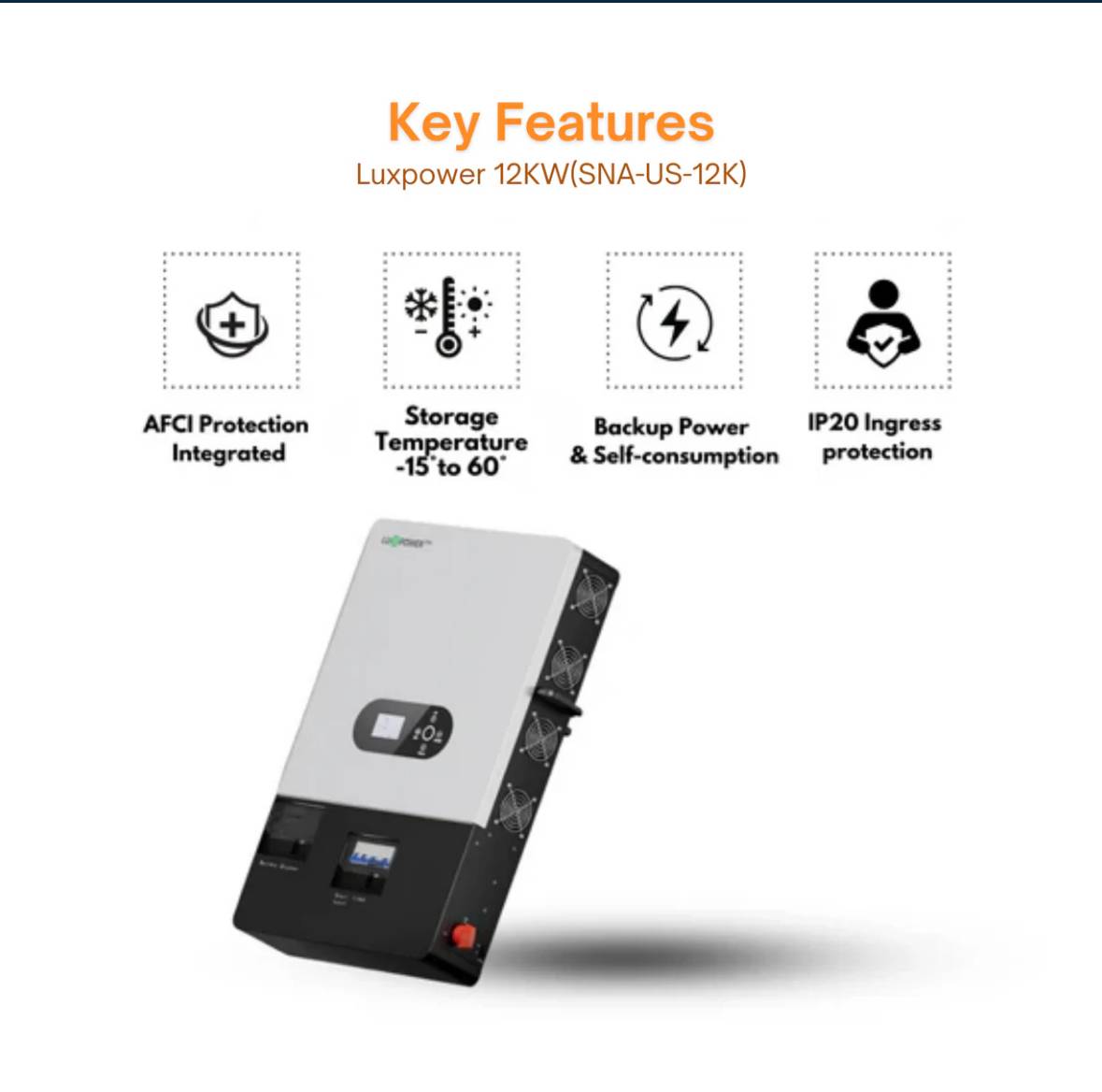

Product 2: Luxpower SNA-US-12K Inverter

Key Features:

• 12KW Output Power: Reliable performance with 240/120V split-phase output.
• Dual MPPTs with 24kW PV Input: Maximizes solar energy utilization.
• 250A Max Charging & Discharging: Supports rapid energy deployment.
• AFCI Protection: Prevents electrical fire risks.
• Dual AC Output Ports & Generator Support: Flexible load connections and backup power integration.
• Smart Cooling System: Optimized thermal management for longevity.
• Comprehensive Monitoring: LCD display, RGB lights, RS485, Wi-Fi, CAN for real-time monitoring.
• Certified & Safe: UL9540, UL1741, CSA 22.2 compliant with a 5-year warranty.

Specifications:

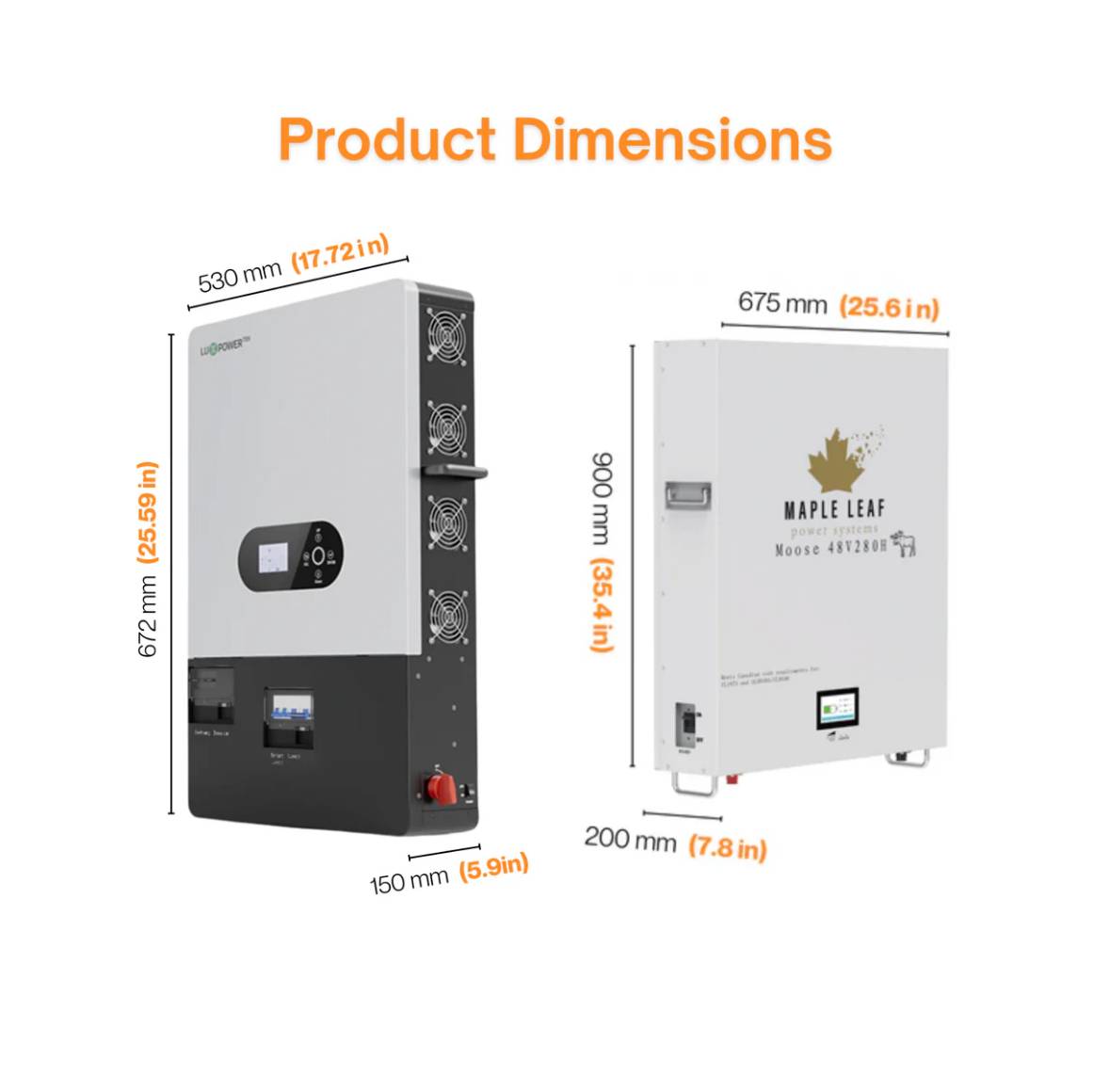

• Dimensions: 530830150mm / 17.7225.595.9 in
• Weight: 45kg / 99.2 lbs
• IP Rating: IP20
• Operating Temperature: 0 to 45℃
• Communication Interface: LCD+RGB, RS485 / Wi-Fi / CAN
• Warranty: 2 years manufacturer, 3 years Maple Leaf extension (5 years total)
